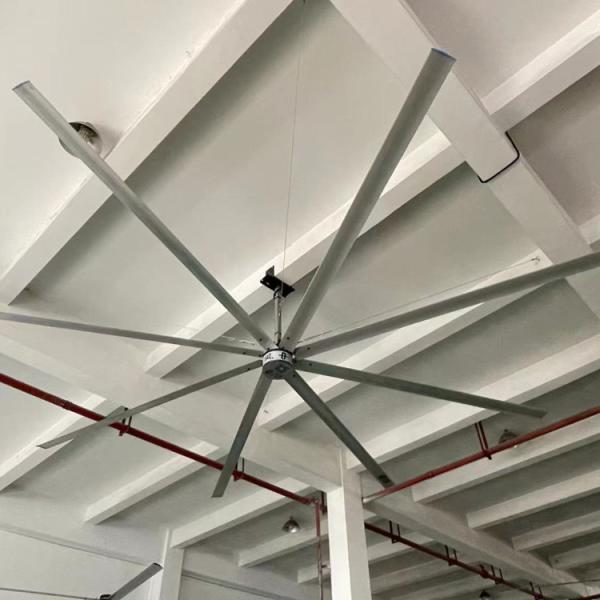

Aluminum Blades Livestock Ventilation Fans Exhaust Air Cooler For Warehouse

  • 1
  • 2

Brand Name : Terrui

Model Number : YBA07306ECA0

Place of Origin : China

MOQ : 5pcs

Payment Terms : T/T

Packaging Details : Carton

Price : discuss

Certification : CE

Blade Materia : 6pcs Alloy

Product name : 24FT/7.3M Ceilling fan

Application : Ventilation and cooling equipment

Power : 3Φ/380V/50HZ

Max Airflow : 14300m³/min

Coverage Area : 1400m²

Motor : Outer rotor permanent magnet brushless DC motor

Rotation Speed : 55r/min(20%-100% speed control)

Contact Now

Livestock Ventilation Fans

Ceiling fan motor adopts advanced external rotor permanent magnet synchronous motor, all copper core winding, good heat resistance, moisture resistance, impact resistance, high efficiency, energy-saving, silent, stable operation, lifelong
maintenance-free. The ceiling fan motor adopts an advanced external rotor permanent magnet synchronous motor, which is efficient,energy-saving, quiet, stable operation, and maintenance-free for life.

Large-scale fluid mechanics simulation design of the fan blade surface, the best air supply effect; the wall thickness is
increased, and the inner cavity is equipped with 4 stiffeners, which greatly improves the resistance to bending and breaking;

High-performance aluminum alloy material; surface electrostatic spray treatment, wear-resistant and easy to clean.

Professional industrial large fan controller, multiple protections such as electronics and logic operation, superheat dissipation device, provide the most perfect guarantee for the safe, stable, and efficient operation of the fan.

The chassis is made of high-performance structural steel; the upper and lower double chassis are clamped by 12 high-strength bolts so that all the fan blades are connected as a whole to prevent looseness and noise.

All 12.9/8.8 grade high-strength bolts are used to ensure quality; mechanical locking nuts are used to prevent loosening; with glue, permanent locking without hidden dangers.

Blade Diacm

7.3m/24 FT

Rotation Speed

55r/min(20%-100% speed control)

Max Airflow

14300m³/min

Input Power

1500w

Air Volume/W

9.53m³/min

Type

Direct Self-Control

Brand

Terrui
